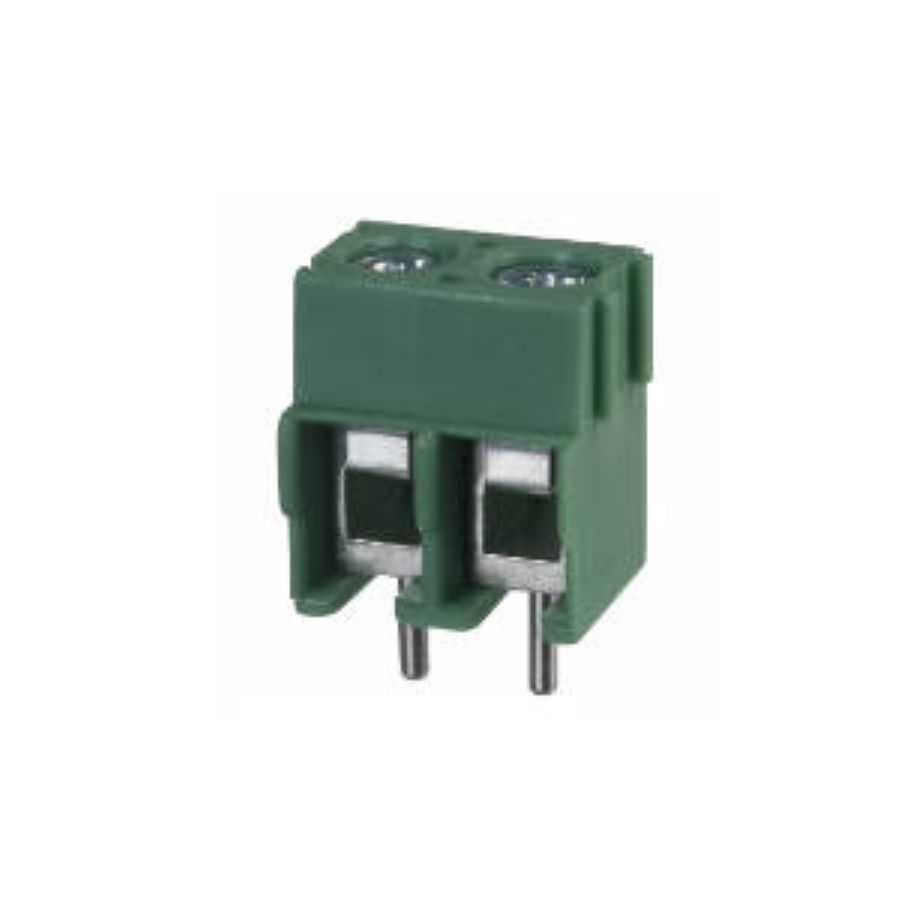

1935161
Manufacturer:
Phoenix Contact
Mfr.Part #:
1935161
Datasheet:
Description:
Terminal Blocks Through Hole 2 5 mm 18 A 300 V 26 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 320 V |
| Length | 9 mm |
| Width | 14.9 mm |
| Termination | Screw |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | 0 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Height | 11.3 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Weight | 1.900013 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 5 mm |
| Current | 18 A |
| Current Rating | 18 A |
| Max Current Rating | 16 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Number of Circuits | 2 |
| Orientation | Horizontal with Board |
| Max Supply Voltage | 250 V |
| Color | Green |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Connector Type | Screw |
| Wire/Cable Gauge | 14 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 12 AWG |
| Housing Color | Green |
| Connection Method | Screw |
| Wire Gauge Range | 26 AWG to 12 AWG |
| Current Rating (IEC) | 24 A |
| Voltage Rating (IEC) | 250 V |
Stock: 154
Distributors
pcbx
pcbxUnit Price$0.49853
Ext.Price$0.49853
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.49853 | $0.49853 |
| 10 | $0.40445 | $4.04450 |
| 25 | $0.37679 | $9.41975 |
| 50 | $0.35102 | $17.55100 |
| 100 | $0.32701 | $32.70100 |
| 300 | $0.30465 | $91.39500 |
| 500 | $0.28382 | $141.91000 |
| 1000 | $0.26898 | $268.98000 |
